M8 Through Bolt for Surface Mounting: A Stronger, Cleaner Aluminium Profile Connection

When designing an aluminium profile structure, there are many situations where components need to be mounted perpendicular or on top of another profile, rather than in a straight, in-line configuration. While traditional cover brackets can achieve this, they often add bulk, reduce available slot space, and interrupt the clean lines of your build.

A more efficient and professional solution is the M8 through bolt method for surface mounting.

What Is an M8 Through Bolt Connection?

An M8 through bolt connection allows you to secure one aluminium profile directly onto the surface of another by passing a bolt straight through the top profile and fastening it into a T-nut in the lower profile.

This method creates a direct, central clamping force, resulting in a stronger and more stable joint compared to external brackets.

Key Benefits of the Through Bolt Method

Stronger Connection
The clamping force is applied through the centre of the profile, improving load distribution and rigidity.

Clean, Flush Finish
The bolt head is recessed into the profile surface, maintaining a tidy and professional appearance.

Maximised Slot Availability
By eliminating bulky brackets, more profile slots remain free for panels, accessories, or additional fixings.

Reduced Component Count
Fewer parts mean simpler assembly and lower overall cost.

Versatile Application
Ideal for stacked profiles, cross members, and structural reinforcements.

Machining Requirements

To implement this method, two simple machining operations are required on the top profile:

Counterbore Hole (Top Surface):
Machined to accommodate the head of the M8 bolt, allowing it to sit flush or slightly below the surface.

Through Hole:
An 8mm diameter hole drilled through the profile, positioned approximately 20mm from the end.

This setup allows the bolt to pass cleanly through the profile and align with the slot below.

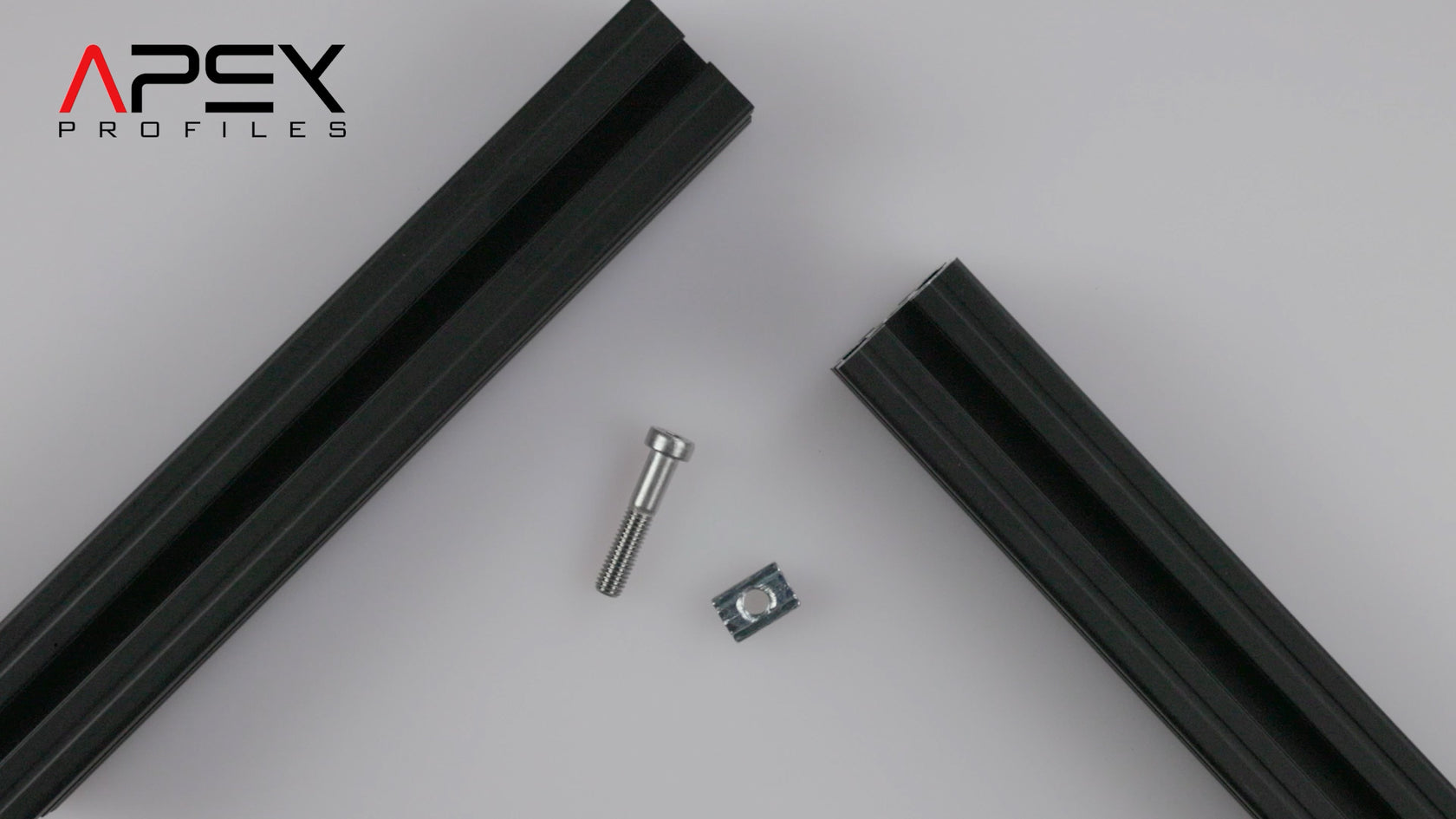

Recommended Fixings

M8 Bolt (40mm length) – passes through the profile

M8 T-Nut – preset or roll-in (post-assembly) option

The 40mm bolt length ensures sufficient engagement with the T-nut while maintaining a secure hold.

Installation Overview

1. Machine the counterbore and through hole in the top profile.

2. Position the profile over the lower section.

3. Insert the M8 bolt through the top profile.

4. Engage with a preset or roll-in T-nut in the lower profile slot.

5. Tighten to achieve a firm, centralised clamp.

Ideal Applications

This method is particularly useful for:

Mounting cross beams or supports

Creating multi-level profile structures

Attaching components directly to frame surfaces

Applications requiring high strength and minimal visual clutter

Why Choose Through Bolting Over Brackets?

Compared to cover brackets, the M8 through bolt method offers:

A more robust and direct connection

A cleaner, low-profile finish

Greater design flexibility and slot accessibility

A Simple Upgrade for Better Builds

If you're looking to improve both the strength and aesthetics of your aluminium profile assembly, the M8 through bolt method is a highly effective solution. By combining minimal hardware with smart machining, you can achieve a strong, streamlined, and professional result in any structural application.
